Changing pump filter for updated G7 pump cartridge

Written by Ella S | November 15, 2021



This article details the steps to change the pump filter for the updated G7 pump cartridge.

You will need:

  • Flat headed tool (example: a pair of tweezers, flat headed screwdriver or a coin)
  • Replacement filter from ACC-PUMP-FILT10

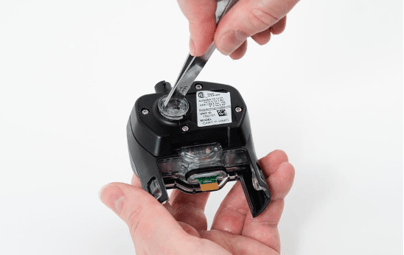

  1. Using a flat-headed tool (shown below: a pair of tweezers), unscrew the filter cover by rotating it 90 degrees counterclockwise.

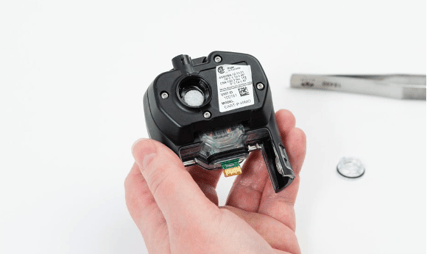

  2. Remove the filter cover and set it aside to expose the old filter.
  3. Remove the old filter and discard.
  4. Insert the replacement filter.
  5. Replace the filter cover and rotate it 90 degrees clockwise to secure. Do not over-tighten. The pump cartridge is now ready for use.
  6.
